Aplicación de perforación de núcleo de diamante JCDRILL en campo geotécnico

Diamond core drilling is a widely used technique in geotechnical engineering for subsurface exploration and site characterization. Its ability to recover high-quality, undisturbed core samples makes it invaluable for evaluating soil, rock and other geological materials. Below are the key applications of diamond core drilling within geotechnical fields:

1. Site Investigation and Subsurface Profiling

- Lithological logging: Recovers intact core samples for detailed geological logging, identifying rock types, bedding planes and structural features.

- Stratigraphic correlation: Helps map soil and rock layers across a site to understand depositional environments.

- Bedrock depth determination: Critical for foundation design, slope stability analysis and tunnel projects.

2. Geotechnical Sampling for Laboratory Testing

- Undisturbed sampling: Delivers high-quality samples for laboratory tests including:

- Unconfined compressive strength (UCS)

- Triaxial shear strength

- Permeability tests

- Consolidation tests

- Rock Quality Designation (RQD): Evaluates rock mass quality for engineering purposes.

3. Structural and Discontinuity Analysis

- Identifies fractures, joints, faults and shear zones that affect slope stability, tunnel design and foundation engineering.

- Measures dip and strike of geological structures for stability assessments.

4. Mineralogical and Petrographic Analysis

- Provides samples for mineral composition studies, supporting:

- Identification of swelling clays (e.g. montmorillonite)

- Assessment of chemical weathering effects

- Rock durability evaluation (e.g. slake durability test)

5. Hydrogeological and Groundwater Studies

- Enables piezometer installation for groundwater level monitoring.

- Helps evaluate aquifer properties (permeability, porosity) through core analysis.

- Detects water-bearing zones and potential seepage pathways in dams and tunnels.

6. Geotechnical Design Parameters

- Foundation design: Determines bearing capacity and settlement characteristics.

- Slope stability: Evaluates weak planes and shear strength of rock masses.

- Tunnels and underground works: Supports Rock Mass Rating (RMR) and Q-system tunnel quality assessment.

7. Construction Material Investigation

- Assesses suitability of quarry materials for:

- Aggregates (crushed rock for concrete)

- Riprap (erosion control)

- Road base materials

8. Geological Hazard Assessment

- Identifies potential geological hazards including:

- Landslide-prone zones

- Karst cavities (sinkholes)

- Fault zones (seismic risk evaluation)

9. Verification of Geophysical Surveys

- Validates geophysical data (seismic, resistivity, GPR) with physical subsurface core samples.

10. Environmental Geotechnics

- Evaluates contaminant migration within rock matrices.

- Supports containment system design for contaminated sites.

Advantages of Diamond Core Drilling in Geotechnics

- High precision: Produces minimally disturbed samples.

- Deep penetration: Capable of drilling hundreds of metres in hard rock.

- Versatility: Works across a wide range of formations from soft soils to hard igneous rock.

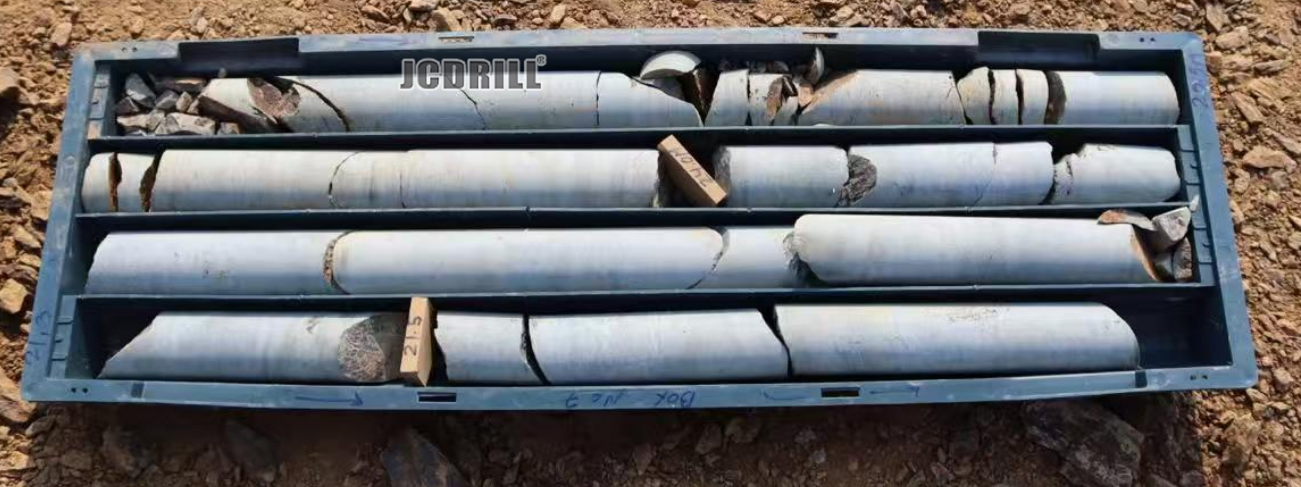

- Core recovery: Enables detailed visual inspection and laboratory analysis.

Conclusion

Diamond core drilling is indispensable in geotechnical engineering for reliable subsurface data collection, enabling safe and cost-effective design of foundations, slopes, tunnels and other infrastructure projects. Its ability to deliver high-quality core samples makes it the preferred method for detailed geotechnical investigations.
