Maximum torque: 13600 Nm
Given progress:3500 mm
Power type: Electric
>> Application

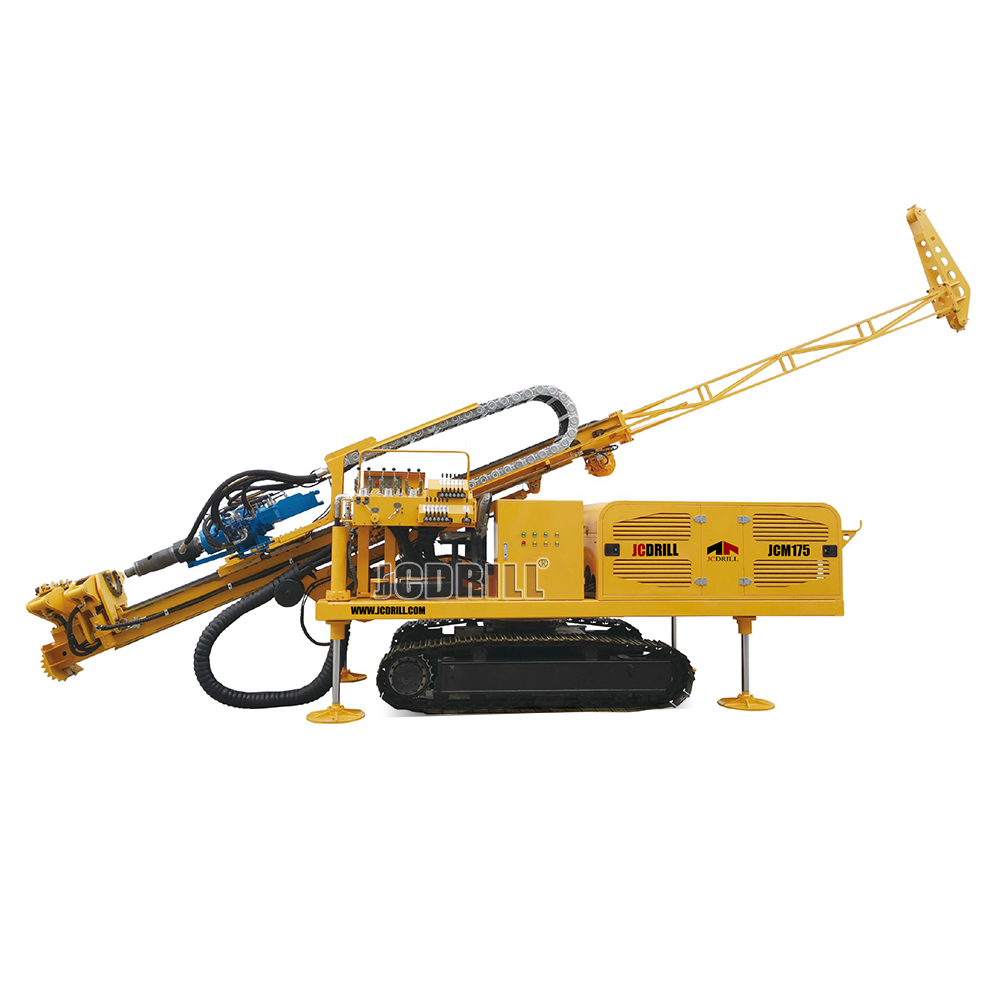

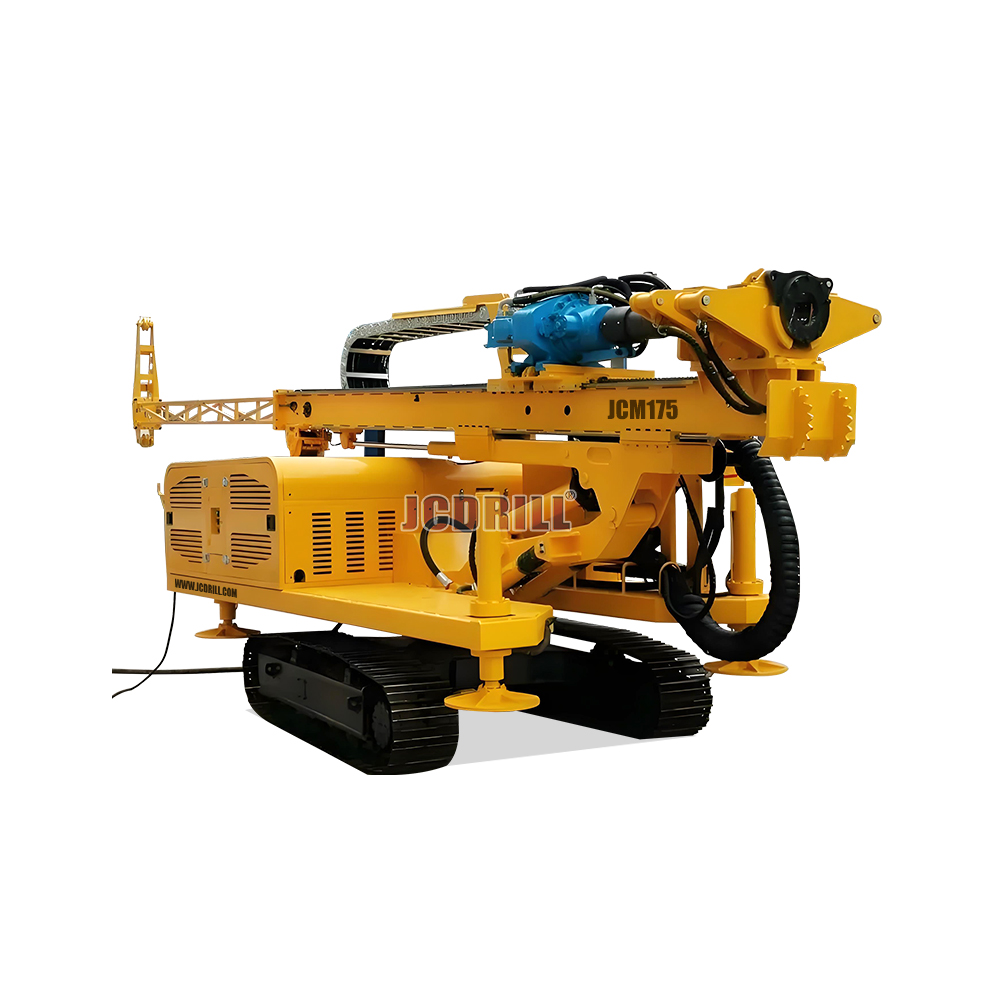

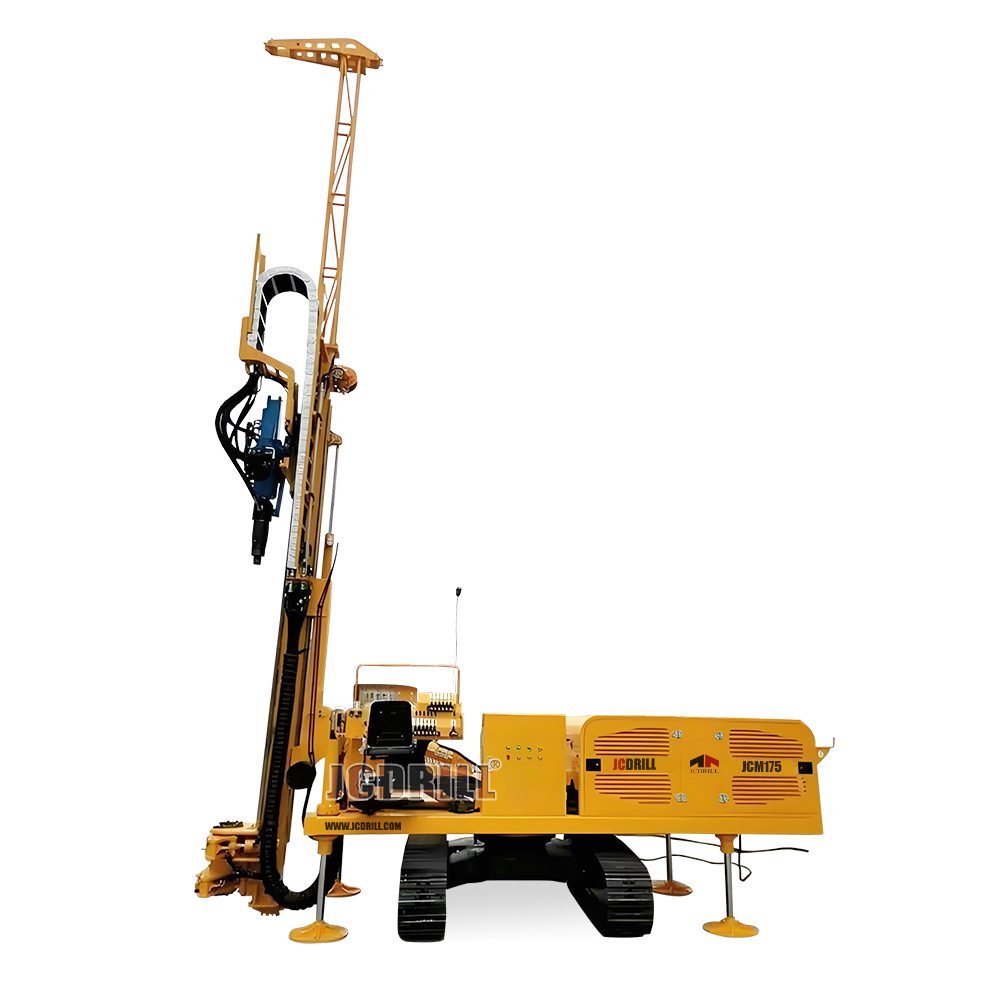

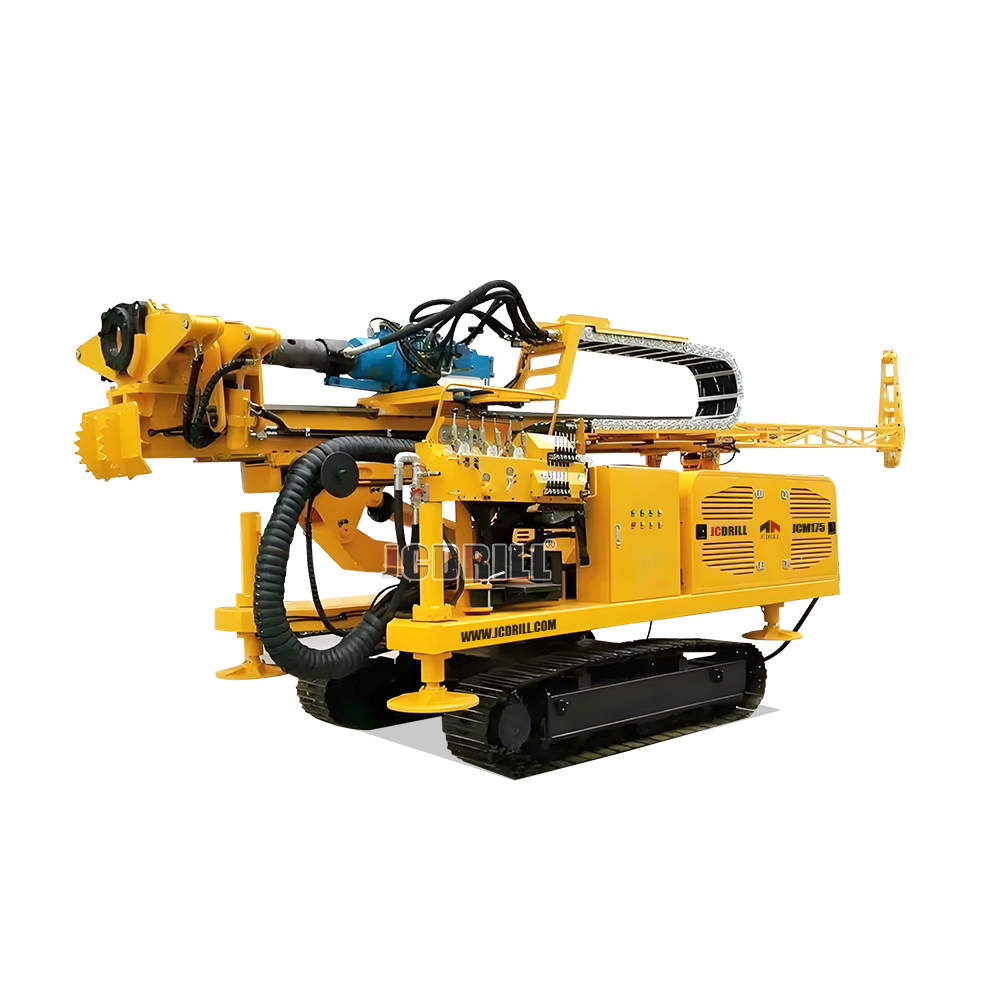

JCM175 hydraulic anchor drilling rig with a center-rotating table is suitable for multi-position drilling. With a compact and sturdy structure, it can be used for anchor borehole, anchor nail borehole, and root pile borehole drilling with multiple drilling techniques at higher drilling efficiency.
Compartir
DESCRIPCIÓN DEL PRODUCTO
>> Characteristics
The JCM175 fully hydraulic anchoring drilling rig is a compact, highly efficient and stable multi-functional drilling rig, specially designed for working conditions such as rock and soil anchoring, geological engineering, and micro-pile construction. Equipped with a central rotary table, it supports multi-station drilling and is suitable for complex construction environments. It is widely used in slope stability, foundation reinforcement, tunnel support and other projects.
High-efficiency construction: Dual-speed drive, high-torque output, enhancing drilling efficiency.
Flexible adaptability: Compact structure, suitable for operation in narrow Spaces.
Stable and reliable: The hydraulic chain feed system ensures construction accuracy.
Environmental protection and energy conservation: Electric power drive is optional to meet the requirements of low noise and zero emissions.
>> Specification
| JCM175 | |||
| Rated power(kW) | 55+55+18.5+2.2 | Feed stroke(mm) | 3500 |
| Caterpillar Band Model No. | LG-135 | Feed force(kN) | 38 |
| Motor | Double-speed | Retraction force(kN) | 76 |
| Tramming speed(m/h) | 580/820 | Feed rate(m/min) | 0~18.5 |
| Ground pressure(N/cm?) | 5.68 | 0~75 | |
| Gradeability(°) | 25 | Retraction rate(m/min) | 0~9.5 |
| Rotation rate at low gear(r/min) | 0~36、0~72 | 0~38.5 | |
| Rotation rate at high gear(r/min) | 0~36/66/79 | Pattern | Cylinder + Chain |
| 0~72/132/158 | Clamp range(mm) | 60~219 | |
| Torque range at low gear(Nm) | 5800/11600 | Maximum passing diameter(mm) | 260 |
| Torque range at high gear(Nm) | 6800/13600 | Dimension(mm) | 7000x2200x2900 |
| lmpact work(N.m) | 750 | Weight(T) | 17 |
| Percussion frequency(min*) | 1400 | ||
